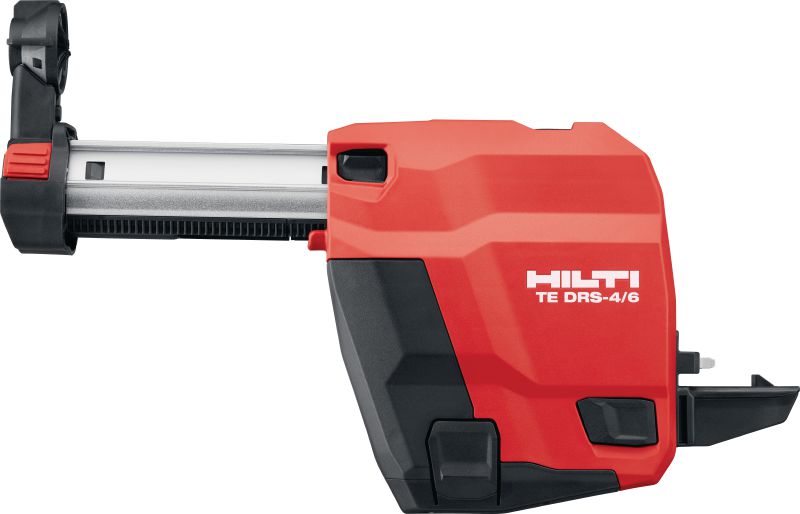

TE DRS 4/6 Dust removal system

Dust removal system TE DRS-4/6 box #2268002

Configurator
Technical Data
Documents
Features & Applications
Related Products
L126022 (229386)
L142669_HNA_cropped (1913033)
L142718_HNA_cropped (1913130)
L145536_cropped (2189931)

On-board vacuum system for convenient dust collection when drilling or chiseling with TE 4-22 and TE 6-22 cordless rotary hammers

  • For use with: TE 4-22, TE 6-22
  • Weight: 1 kg
  • Hammer drilling diameter range: 4 - 20 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
6.610.000,00 VND
6.610.000,00 VND / 1

Technical Data

For use with
TE 4-22, TE 6-22
Weight
1 kg
Hammer drilling diameter range
4 - 20 mm
Maximum drilling depth
110 mm
Need vacuum cleaner
No

Documents

pdf Operating Instruction TE DRS-4/6, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 3.8 MB ]

Features & Applications

Features

  • Virtually dustless drilling – contributes to safer jobsites and better visibility of your work area by removing fine particles before they become airborne
  • Versatile – suitable for dust collection while drilling and chiseling, including many stop drill bits and setting tools for HDI/HKD drop-in anchors (optional extraction heads may be needed)
  • Customisable – two dust box sizes available, so you have the option to choose compactness or capacity depending on the job
  • M-Class dust filter with durable container
  • Faster repeat drilling – dust removal system includes depth gauge with ruler so that you can easily drill to the required depth every time

Applications

  • Virtually dust-free drilling and chiseling with TE 4-22 and TE 6-22 cordless rotary hammers
  • Approved for work involving asbestos according to TRGS 519 issued by the German Federal Institute for Occupational Safety and Health (BAUA)
  • OSHA 1926.1153 Table 1 compliant, virtually dust-free drilling with TE 4-22 and TE 6-22 cordless rotary hammers (HEPA filter included as standard)
