HVU-TZ Anchor capsule

Adhesive capsule HVU-TZ M16 #2295597

Configurator
Technical Data
Documents
Features & Applications
Related Products
6019.tif
6846.tif
5315.tif
7402.tif

Ultimate-performance foil adhesive capsule for anchoring in concrete with dynamic loads

  • Approvals / test reports: ETA, Fire
  • PROFIS software: Yes
  • Material composition: Hybrid urethane methacrylate adhesive

Customers also searched for capsule, fast cure anchor, foil capsule anchor, heavy duty capsule anchors or dynamic load foil.

Choose options

Anchor size
  • M16
Standard embedment depth
  • 125 mm
Pack size
  • 16 pc
 Product options
Quantity
Total Pieces
16
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
1.320.000,00 VND
82.500,00 VND
/
1

Technical Data

Approvals / test reports
ETA, Fire
PROFIS software
Yes
Material composition
Hybrid urethane methacrylate adhesive
Storage and transportation temperature range
5 - 25 °C
Seismic loading
No
Shelf life from date of manufacture (at 23°C and 50% relative humidity)
18 months

Documents

Approval document
Technical information
Certificate
Brochure
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf ETA-17/0200 for adhesive capsule HVU-TZ and HAS-TZ, English, German, Polish [ 2.1 MB ]
pdf ETA 03/0032 for HVZ adhesive anchor system (ETAG 001-05, Option 1), German, English [ 2.8 MB ]

Features & Applications

Features

  • Tested according to standard temperature curve (ISO 834) and the German tunnel temperature curve (ZTV-ING, part 5)
  • Formulated for flexibility – you can use these adhesive capsules for a wide range of load conditions, concrete types and approval requirements
  • Suitable for use in cracked concrete
  • Suitable for dynamic loading subject to fatigue and shock
  • Flexible foil capsule instead of glass: a robust product for real jobsite conditions

Applications

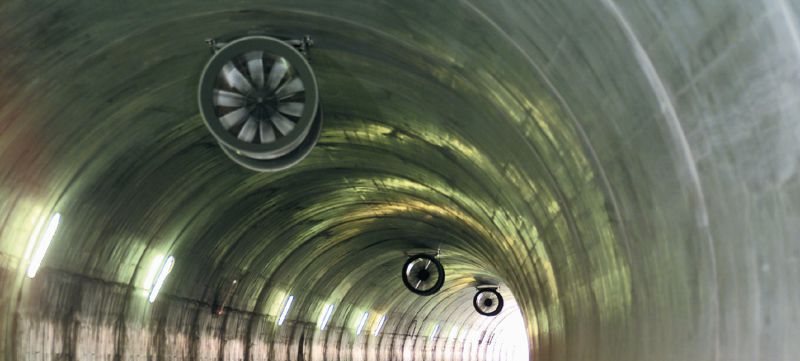

  • Heavy-duty fastenings in cracked concrete (steel structures, machinery, crash and noise barriers, curtain wall structures, railings.)
  • Safety-relevant fastenings
  • Dynamic loads
