HIT-RE 500 V4 Epoxy anchor

Injectable mortar HIT-RE 500 V4/500 #2287554

L041481_V7_edited (209288)
L041483_V7_edited (209285)
L140821_cropped (218571)
L140814_cropped (218567)
L140802_cropped (218560)
L140799_cropped (218563)
L140792_cropped (218554)
L083049_v2_cropped (218422)
L602199_cropped (5535604)
L138369_cropped (201332)

Ultimate-performance injectable epoxy mortar with approvals for rebar connections and heavy-duty anchoring

  • Approvals / test reports: ETA, Fire
  • Seismic loading: Yes
  • Fatigue loading: Yes

Customers also searched for Mortars, Keo khoan cấy, Keo cấy thép, Hóa chất khoan cấy or Khoan cấy.

Choose options

Content per can/cartridge
  • 0.5 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
1.150.000,00 VND
1.150.000,00 VND
/
1

Technical Data

Approvals / test reports
ETA, Fire
Seismic loading
Yes
Fatigue loading
Yes
Fire resistance
Yes
PROFIS software
Yes
Storage and transportation temperature range
5 - 25 °C
Shelf life from date of manufacture (at 23°C and 50% relative humidity)
12 months

Documents

pdf ETA-20/0475 HCC-K, English, German, Polish, French [ 3.8 MB ]
pdf ETA-20/0793_HIT-RE 500 V4_Rebar_EC2_Seismic_112020, English, French [ 6.9 MB ]
pdf ETA-20/0539_HIT-RE 500 V4_07/022, English, French, Polish, German [ 6.3 MB ]
pdf ETA-20/0541_HIT-RE 500 V4_Anchor_EC2_100years_112021, English, French, German, Polish [ 9.6 MB ]
pdf ETA-20/0540_HIT-RE 500 V4_Rebar_EC2_100years_112020, English, French, Polish, German [ 10.1 MB ]

Features & Applications

Features

  • Ultimate performance and model code-compliant design for virtually any concrete-to-concrete and steel-to-concrete connections – ETA assessment for anchoring inc. C1 and C2 seismic and ETA for rebar inc. fire and seismic
  • The first epoxy mortar qualified according to EAD 332402-00-0601 for concrete-to-concrete connections – end anchorages with an acting moment can now be designed and executed with post-installed rebars without splices according to the latest update of design TR069 for static, seismic and fire loading for fire requirements up to 240 min
  • Suitable for the toughest jobsite conditions – works even in diamond-cored, wet or underwater holes (depending on rod specification and approvals), extremely deep injections, large diameters and at temperatures down to -5°C/23°F
  • Improved bond strength in the most demanding applications – such as cracked concrete and seismic C2 conditions
  • Easier to specify and order – use PROFIS Engineering to design baseplate connections and PROFIS Reinforcing bar to design concrete-to-concrete connections according to EC2, TR069 or the Hilti Design Method

Applications

  • Structural connections with post-installed rebar (e.g. slab extensions, wall/column connections, stairs, foundations, etc.)
  • Structural renovation of buildings, bridges and other civil works, retrofitting and re-strengthening of concrete members
  • Anchoring structural steel connections (e.g. steel columns, beams, etc.)
  • Fastening structural baseplates, including in cracked concrete and challenging seismic conditions

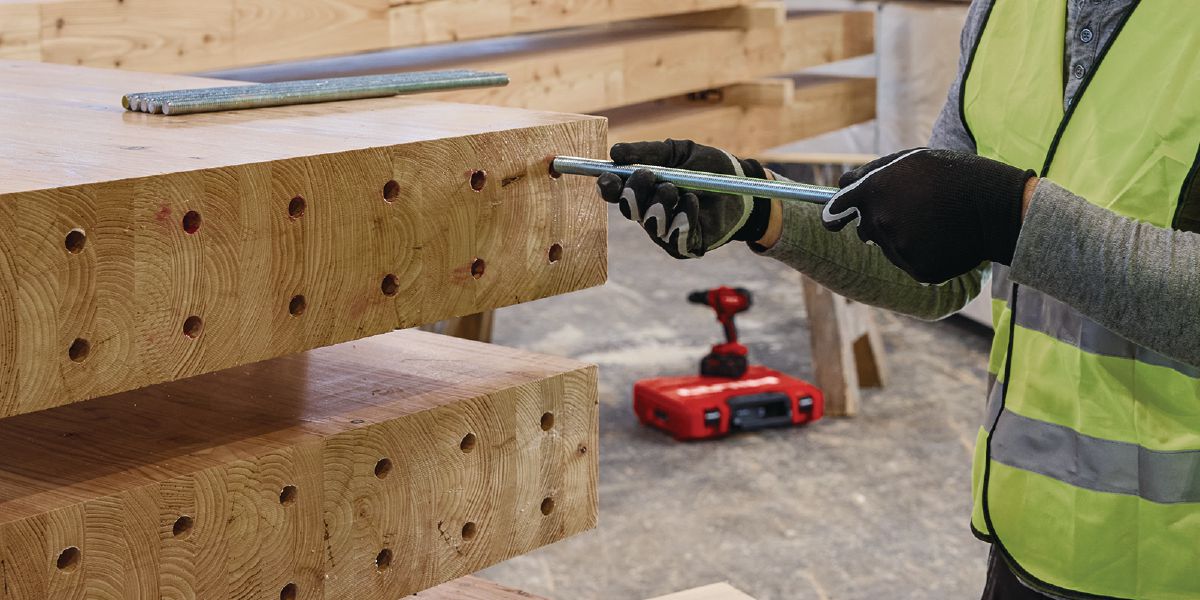

  • Fastening in natural stone and wood, including GLT and CLT made from spruce, pine or fir
