HSL4-SK Heavy-duty wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L121481 (205837)
L121483 (205834)
HSL-3-SK
HSL-3-SK

Ultimate-performance heavy-duty wedge anchor with approvals for flush-mount fastenings in concrete (carbon steel, countersunk)

  • Head configuration: Countersunk
  • Base materials: Concrete (cracked)
  • Type of fastening: Through-fastening

Choose options

Anchor size
  • M8
  • M10
  • M12
Anchor length
  • 80 mm
  • 90 mm
  • 100 mm
  • 120 mm
Pack size
  • 20 pc
  • 40 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 9.130.000,00 VND

Technical Data

Head configuration
Countersunk
Base materials
Concrete (cracked)
Type of fastening
Through-fastening
PROFIS software
Yes

Documents

Approval document
Technical information
Brochure
Declaration of performance
Operating Instruction
pdf ETA_19-0556_HSL-4_11/2022, English, French, Polish, German [ 5.6 MB ]
pdf ICC-ES Evaluation report, ESR-4386 HSL4, Concrete, English [ 1.1 MB ]

Features & Applications

Features

  • Aesthetic appearance and no tripping hazard due to flush installation
  • High tensile and shear load capacity, force-controlled expansion allows follow-up expansion
  • ETA Option 1 for cracked and uncracked concrete
  • ICC-ES/AC 193 for cracked and uncracked concrete and seismic
  • Suitable for dynamic loading including fatigue, seismic and shock

Applications

  • Fastenings in safety-relevant and/or dynamic applications where a flush installation or aesthetic appearance is required, including applications in nuclear power plants
  • Applications where extensive approval back-up or technical back-up is required

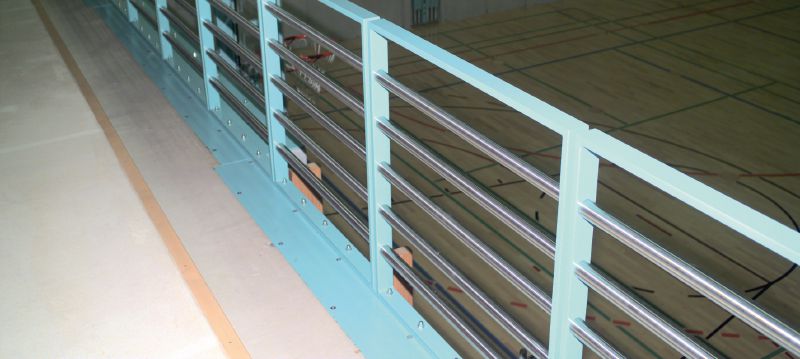

  • Examples are medical equipment, hand rails, machines, car hoists, safety fences, pumps, etc.
  • Applications requiring an aesthetic countersunk head finish

For approval or certificate information, please see individual items.
