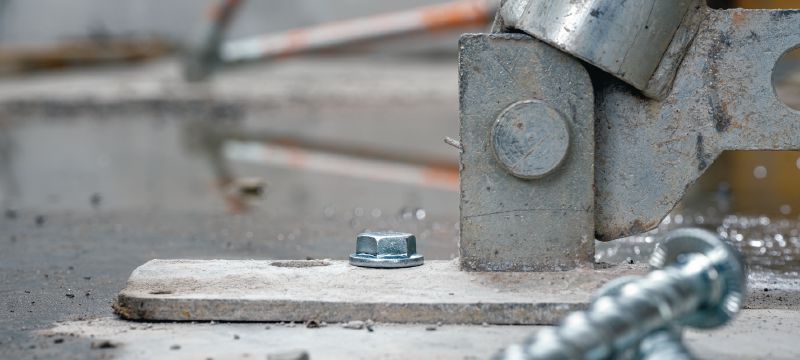

HUS4-H Screw anchor

High-performing hexagonal head screw anchor for fastening to concrete and masonry (carbon steel)

Customers also searched for bu loong ren cắt, bu lông, bu loong vít, tái sử dụng or bảng mã.

Anchor size

Anchor length

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 1.700.000,00 VND

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Hex head

Approvals / test reports

ETA, Fire, Seismic

Base materials

Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)

Reusable (and removable)

Yes

Cleaning procedures

Manual cleaning, Non-cleaning

PROFIS software

Yes

Environmental conditions

Dry indoor

Material composition

Steel, zinc-plated (min. 5 µm)

Removable, adjustable (nominal embedment ≥ 60 mm) and reusable – ideal for temporary fastenings
Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
Improved setting with less blocking – thanks to smaller core diameter and new thread design
Hexagonal head – with an integrated washer for a neat appearance of through-fastened baseplates
Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Temporary fastenings to concrete – such as traditional formwork, propping systems and protection barriers
Suitable for use in uncracked and cracked concrete, steel-fibre reinforced concrete, hollow core slabs (size 8-14), metal decks (size 8-10), low-strength concrete and masonry (size 8-10)
Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use

For approval or certificate information, please see individual items.
