CFS-CT B

Firestop board CFS-CT B 1000x600x50 whit #2036608

Firestop board, Coated board, Mineral wool, Batt, Panel 1000x600x50mm
L095618_cropped (180531)
L095619_cropped (180533)
L095620_cropped (180535)
L095622_cropped (180539)
L095623_cropped (180541)
L095624_cropped (180543)
L095625_cropped (180545)
L095626_cropped (180547)
L095628_cropped (180551)
L095629_cropped (180553)
L095630_cropped (180555)
L095631_cropped (180557)
L095632_cropped (180559)
L095633_cropped (180561)
L095634_cropped (180563)

Firestop coated board well suited for EI120 double board systems.

  • Base materials: Drywall, Concrete, Aerated concrete, Masonry
  • Colour: White
  • Storage and transportation temperature range: 0 - 40 °C

Customers also searched for Ablative Batt, Ablative Coating or Acoustic.

Choose options

Dimensions (LxWxH)
  • 1000 x 600 x 50 mm
Pack size
  • 5 pc
 Product options
Quantity
Total Pieces
5
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
23.730.000,00 VND
4.746.000,00 VND
/
1

Technical Data

Base materials
Drywall, Concrete, Aerated concrete, Masonry
Colour
White
Storage and transportation temperature range
0 - 40 °C
Application temperature range
5 - 40 °C
Temperature resistance range
-40 - 100 °C
Can be painted
Yes

Documents

pdf Declaration of performance CFS-CT mit TROX (EN) [ 164.8 KB ]
pdf Declaration of performance CFS "1121-CPD-JO5000" (EN) [ 137.3 KB ]
pdf Declaration of performance CFS-CT (EN) [ 187.8 KB ]

Features & Applications

Features

  • Board pre-coated for immediate use
  • Strong bonding of coating on board to reduce cracking and delamination while cutting
  • Broad approval range
  • Smoke-tight coating
  • Can be re-penetrated

Applications

  • Mixed penetrations in flexible and rigid walls from 100 mm and rigid floors from 150 mm

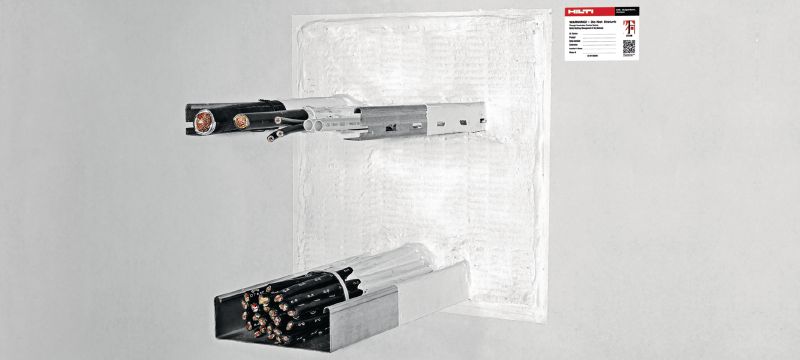

  • Cables, cable bundles, cable trays and cable conduits

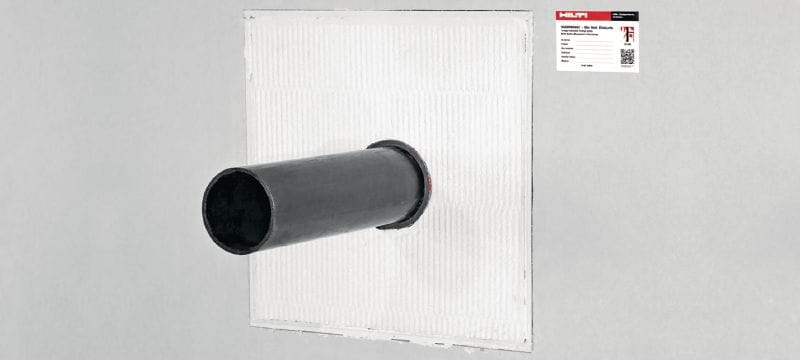

  • Non-combustible (metal) pipes with non-combustible insulation
  • Non-combustible (metal) and composite pipes with combustible insulation in combination with CFS-B firestop bandage or CFS-C P firestop collar
  • Combustible pipes in combination with CFC-C P or CFS-C firestop collars or CFS-W firestop wrap
