MP-U Quick-close pipe clamp

Pipe clamp MP-U 147-153 M8/10 #2305352

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003535_v2 (223716)
LCG003544_v3 (223707)
LCG003538_v3 (223715)
LCG003558_v1_cropped (223749)
IS_MP-U_00020 (223738)

Galvanised pipe clamp with quick closure for high productivity in medium-duty applications

  • Approvals: ETA
  • Fire resistance (yes/no): Yes
  • Material composition: DC01 - DIN EN 10130, DD11 - DIN EN 10111

Choose options

Clamping range - D
  • 147 - 153 mm
Pack size
  • 10 pc
 Product options
Quantity
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
2.060.000,00 VND
206.000,00 VND
/
1

Technical Data

Details
Technical illustrations
Approvals
ETA
Fire resistance (yes/no)
Yes
Material composition
DC01 - DIN EN 10130, DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Tightening torque
3 Nm

Documents

Approval document
Documentation
Declaration of performance
Sustainability Documentation
Operating Instruction
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]
pdf ETA 20/0952 MP-U-I, MP-U & MP-U-G (30.11.2022), English, German, French [ 6 MB ]

Features & Applications

Features

  • Quick-closing safety mechanism – makes pipe installation faster, easier and more reliable, especially overhead
  • Extra-wide opening – pivoting half-ring gives you easier, unhindered access when inserting pipes into the pipe clamp
  • More flexibility – pipe clamps available with a variety of connection head options
  • Complete clamping range – from the smallest to largest diameter across the entire product range

Applications

  • medium-duty pipe installations up to 6"

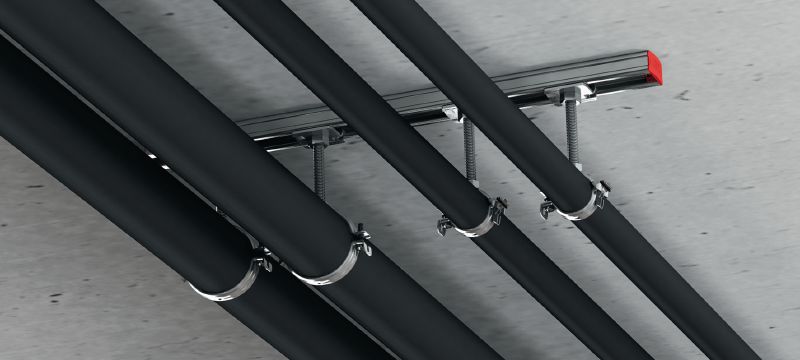

  • Fastening fresh water, waste water and heating pipes in residential and industrial construction
  • Sanitary and heating applications with pipes of various materials
  • Installing pipes in areas with fire safety requirements, such as escape and rescue routes
  • Recommended for use in dry, interior environments
