MP-MI heavy-duty pipe clamp

MP-MI
MP-MI DL/EL
eps-file
MP-MI
MP-MI
MP-MI DL/EL
28513_G.eps
28513_C.eps
28513_DL.eps
28513_DL_EL.eps
28513_EL.eps
MP-MI
MP-MI DL/EL
eps-file
MP-MI
MP-MI
MP-MI DL/EL
28513_G.eps
28513_C.eps
28513_DL.eps
28513_DL_EL.eps
28513_EL.eps

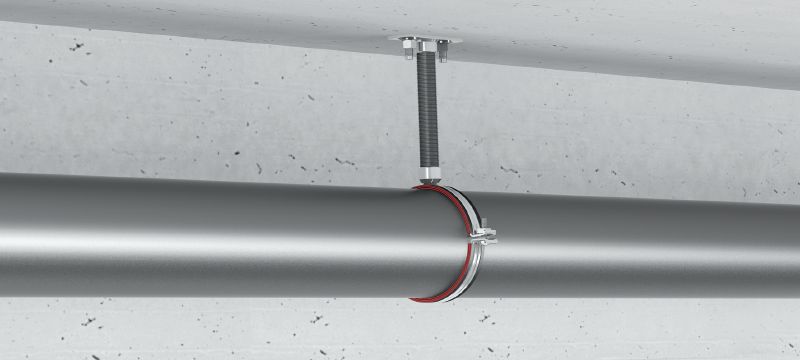

Galvanised pipe clamp with sound insulation for heavy-duty applications

  • Noise reduction: 19 dB (A)
  • Temperature resistance: -40 - 110 °C
  • Material composition: S235JRG - DIN EN 10025

Choose options

Clamping range - D
  • 82 - 90 mm
  • 108 - 114 mm
Nominal pipe size (imperial)
  • 3 in
  • 4 in
Pack size
  • 5 pc
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 3.930.000,00 VND

Technical Data

28513_G.eps
28513_C.eps
28513_DL.eps
28513_DL_EL.eps
28513_EL.eps
Noise reduction
19 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A

Documents

Features & Applications

Features

  • Solid, welded nuts for closing screws (diameter 68/72 mm and above)
  • Pre-assembled non-slip rubber profile
  • Profiled clamp band for higher rigidity

Applications

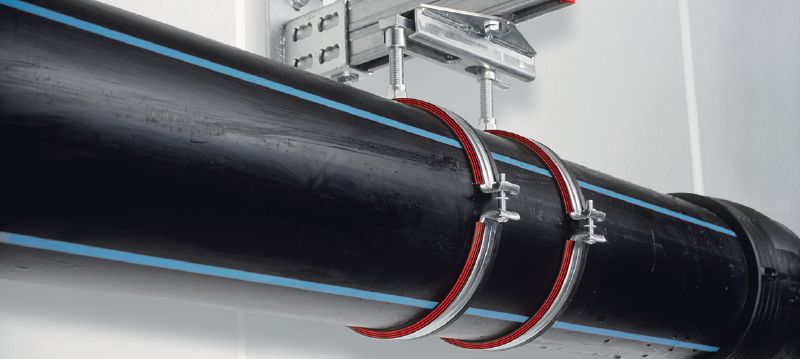

  • heavy-duty pipe installations up to 273 mm
  • Installing industrial pipes
  • Mounting process and control queues
  • heavy-duty plumbing and heating applications
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
