TE 800-AVR Concrete demolition hammer

Breaker TE 800-AVR 230V #2064657

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
TE 800-AVR (68482)
TE 800-AVR (69326)
TE 800-AVR (69344)
TE 800-AVR (69341)
TE 800-AVR (69346)

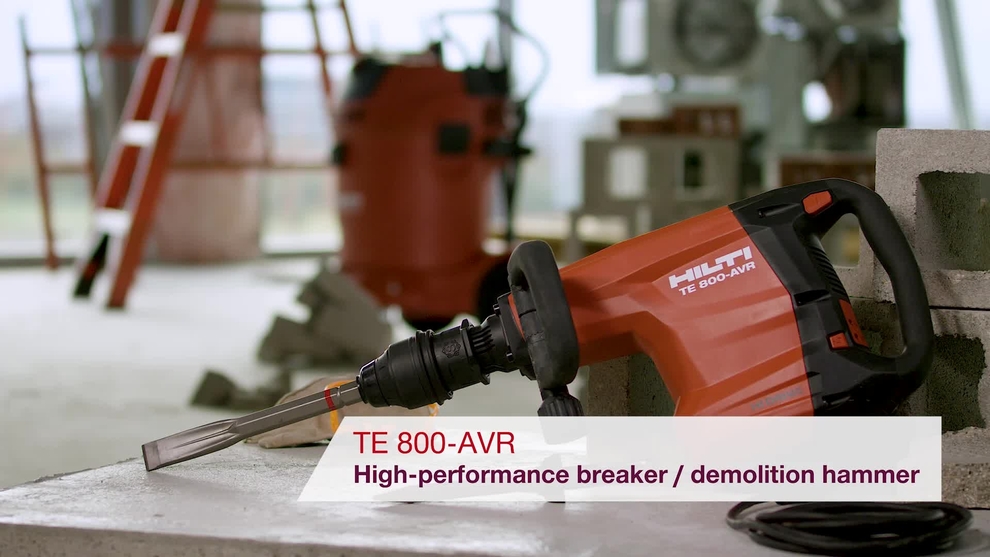

Very powerful TE-S demolition hammer for heavy-duty chiselling in concrete, with Active Vibration Reduction (AVR)

  • Working direction: Wall, Floor
  • Tool chuck type: TE-S
  • Weight according EPTA Procedure 01/2003 without battery: 10.6 kg

Customers also searched for Máy đục bê tông, Breaker, Đục phá, Hilti Vietnam or Chisel.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
25.860.000,00 VND
25.860.000,00 VND
/
1

Technical Data

Working direction
Wall, Floor
Tool chuck type
TE-S
Weight according EPTA Procedure 01/2003 without battery
10.6 kg
Single impact energy
21 J
Rated current
10 A
Full hammering frequency
1890 impacts/minute
Max. chiselling performance
2500 cm³/min
Dimensions (LxWxH)
587 x 141 x 326 mm
Triaxial vibration for chiselling in concrete
9.0 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
90 dB (A) 2
Rated input power
1850 W
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction TE 800, TE 800-AVR (01), Arabic, cn, Danish, German, English, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 6.3 MB ]
pdf Operating Instruction Side Handle, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 355.9 KB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 13.9 KB ]
pdf Operating Instruction Taiwan RoHS TE 800-AVR, cn, English, Chinese [ 298.6 KB ]

Features & Applications

Features

  • Powerful breaking performance thanks to exceptional impact energy and innovative Hilti chisels
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • High robustness and long lifetime due to separate lubrication chambers
  • Power reduction button for use on lighter materials and for greater precision in controlled breaking jobs
  • Optional TE DRS-B dust removal system collects up to 95% of fine dust

Applications

  • Demolition work on walls
  • Corrective work on floor slabs
  • Breaking out openings for doors and windows
  • Making penetrations for ducts and pipes

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • 1-month no-cost period after each paid repair
  • Smooth on-site pick-up and delivery thanks to our strong partnerships with trusted carriers
  • One click or call is all it takes – we do the rest
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 1-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
More information about LifeTime Services
