Nuron

TE 4-22 Cordless rotary hammer

Cordless rotary hammer TE 4-22 case #2253087

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L126033 (228192)
L145536_cropped (2189931)
L145565_cropped (2209343)
L142669_HNA_cropped (1913033)
L145550_cropped (2209334)

Compact SDS Plus cordless rotary hammer with our best performance-to-weight ratio for overhead drilling (Nuron battery platform)

  • Weight according EPTA Procedure 01/2003 without battery: 2.5 kg
  • Optimum hammer drilling range: 4 - 14 mm
  • Single impact energy: 2.3 J

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
12.500.000,00 VND
12.500.000,00 VND / 1

Technical Data

Weight according EPTA Procedure 01/2003 without battery
2.5 kg
Optimum hammer drilling range
4 - 14 mm
Single impact energy
2.3 J
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
1050 rpm
Full hammering frequency
5100 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Depth gauge, Hammer drilling, Integrated Dust Removal System (DRS), Reverse mode, LED working light
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12.3 m/s² 1
A-weighted emission sound power level
98 dB (A) 2
A-weighted emission sound pressure level
87 dB (A) 3
Dust removal system available
TE DRS-4/6, TE DRS-C, TE DRS-D
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction TE 4-22 (03), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Korean, Lithuanian, Latvian, Norwegian, Swedish, Turkish, Chinese [ 3.2 MB ]

Features & Applications

Features

  • Compact but highly capable – the best balance of power-to-weight ratio, drilling speed and work per charge of any Hilti SDS Plus rotary hammer drill
  • Faster drilling – finish your installation faster thanks to 20% more power from the new brushless motor and revolutionary Nuron batteries
  • Improved comfort – reduced weight, redesigned grips, LED light and better balance make the TE 4-22 cordless rotary hammer especially easy to handle when drilling overhead
  • Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrollable spinning if the bit sticks
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

Applications

  • Drilling and hammer drilling in concrete and masonry

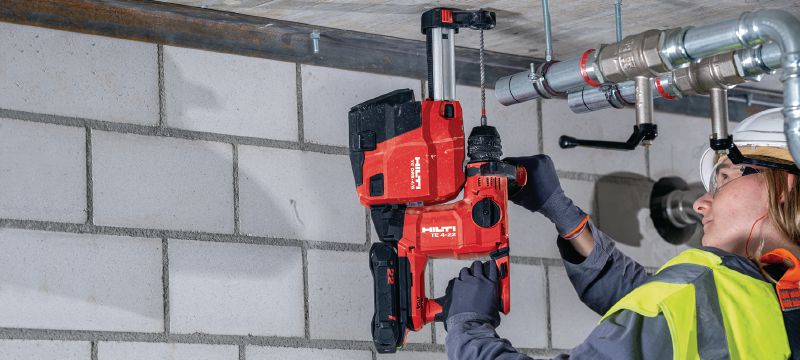

  • Overhead drilling in concrete, such as for hanging pipes and conduits, MEP installations and suspended ceilings
  • Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
  • Setting anchors and drop-in anchors in concrete (with optional TE-C bit holder and setting tool)
  • OSHA 1925.1153 Table 1 compliant, virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)

Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
